NNTN8527A NNTN8527 - Motorola APX6000 Vehicular Adapter

NNTN8527A NNTN8527 - Motorola APX6000 Vehicular Adapter

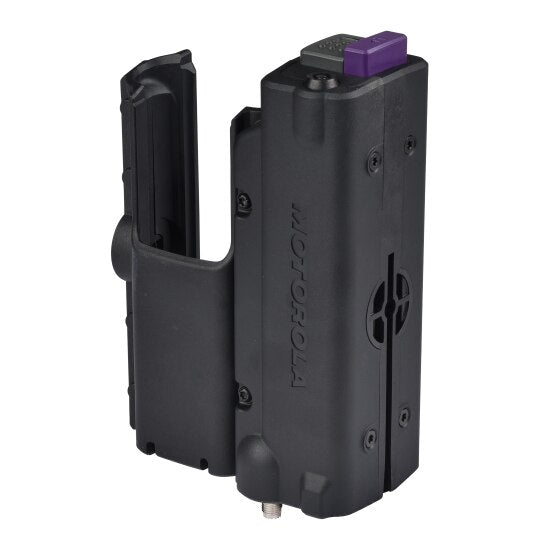

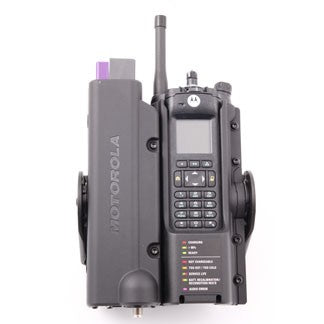

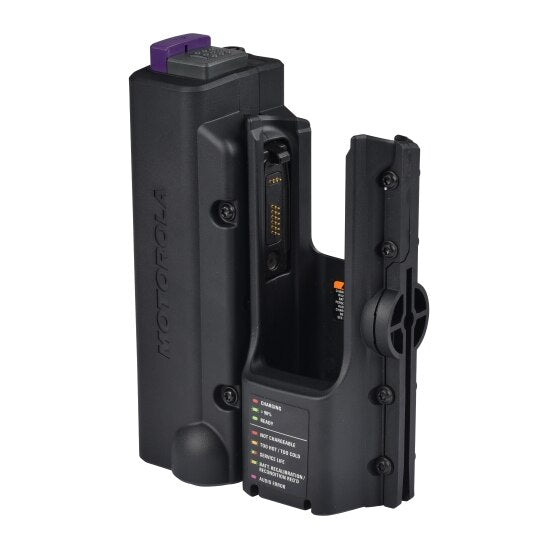

When installed in a vehicle, the APX Vehicular Adapter (VA) utilizes the mobile antenna providing enhanced transmit and receive range. Powered by the vehicle’s 12-volt battery, the APX VA provides charging capabilities and IMPRES functionality identical to the APX vehicular charger (NNTN7624). Charge status indication and audio (microphone) operating modes are displayed through a dedicated LED. The mobile microphone and optional amplified loudspeaker allow for safer operation of the portable radio in the APX vehicular adapter. Features a compact, open-face design and includes APX VA charger, fused power cable, keys for the mechanical locking feature, and trunion bracket and mounting bolts.

Audio accessories and vehicle mounted antenna purchased separately. Transmit audio and PTT via APX palm microphone (HMN1090), keypad microphone (HMN4079), visor microphone (RMN5054) and external PTT (GLN7278 or RLN5926). Receive audio from either APX device speaker or optional external speaker (HSN4038). VA audio accessory interfaces are same as the APX mobile control head microphone port and the transceiver rear accessory port. External vehicle mounted antenna interface is mini-UHF jack. VA charger always ON when APX device inserted; charger may be wired to be ON only when vehicle is on, or ON continuously independent of vehicle state. Requires APX devices with firmware version R13.00.00 or later. Information Manual MN000350A01.

** Only for use with single band APX 6000, APX 6000Li, APX 6000XE and SRX 2200 radios ONLY. The VHF radios supported will be those with 7.15SR or greater, VHF HW prior to 7.15 will not be compatible with the APX VA.

** DOES NOT INCLUDE MOUNTING BRACKET, NTN8940 must be purchased seperately.
