Astron Corporation
SS-18SM/GTX/M1225 - Astron Switching Power Supply CM200 CM300
SS-18SM/GTX/M1225 - Astron Switching Power Supply CM200 CM300
Regular price
$267.00 AUD
Regular price
Sale price
$267.00 AUD
Unit price
/
per
Couldn't load pickup availability

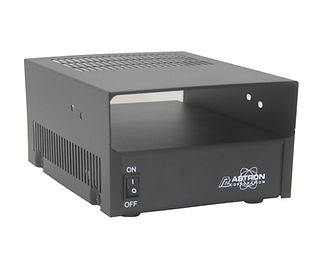

SS-18SM/GTX/M1225 - Astron Switching Power Supply for CM200 / CM300
Technical Parameters and Specifications
| Power Supply Type: | Switching, Regulated |
| Battery Backup: | No |
| Power Supply Voltage Adjustment Control: | Internal |
| Power Supply Metering: | None |
| Power Supply High Current Terminal Location: | Rear panel |
| Power Supply Low Current Terminal Location: | None |
| Power Supply Lighter Socket: | No |
| Power Supply Cooling Method: | Heat sink |
| Power Supply Input Voltage: | 105 – 225 VAC |
| Power Supply Output Voltage, Volts: | 13.8 ± 0.05 VDC |
| Power Supply Continuous Output, Amps: | 15.0 A @ 13.8 VDC |
| Power Supply Peak / Intermittent Output, Amps: | 18.0 A @ 13.8 VDC |
| Power Supply Voltage Adjustment Range: | 12.2 - 14.5 VDC |
| Power Supply Current Limit Adjustment Range: | None |
| Power Supply Shipping Weight: | 3.6 lbs (1.6 kg) |
| Power Supply Dimensions: | 6.0 x 2.375 x 9.0” (15.2 x 6.0 x 23.0 cm) |
