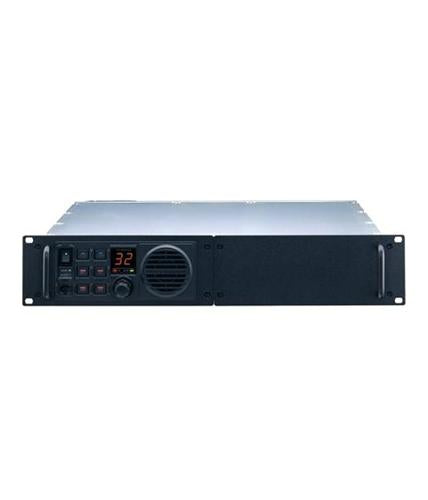

Vertex Standard VXR-9000 - UHF 450-490 Mhz 100 Watt Repeater

Vertex Standard VXR-9000 - UHF 450-490 Mhz 100 Watt Repeater

Rack Mount FM Repeater, 100W Continuous, 450-490MHz, 32CH Note- VXR-9000's cannot be controlled remotely via tone nor DC. VXR-9000 is not capable of interfacing a tone panel on the DSUB 25 connector.

High Power Output For Exceptional Reach and Performance

POWER SUPPLY NOT INCLUDED.

32 Channels
50 Watts or 100 Watts
VHF: 134 – 160 MHz; 148 – 174 MHz
UHF: 400 – 430 MHz; 450 – 480 MHz
6 Dual-Function Programmable Keys
Can perform in repeater or base station mode depending on the application. Includes Priority Channel scanning capability for efficient communications monitoring.
Power Supply Backup With Alert
Should DC power fail at the repeater site, the VXR-9000 will automatically revert to a backup DC power source if connected. Under backup DC power, the repeater will transmit an alert message to notify the operator that immediate attention is required at the repeater site.
Designed For High Reliability
The cooling fan diameter is 3+ inches and thermostatically controlled to ensure a stable temperature environment. Fan operation may be programmed for three options: off, continuous or temperature-controlled, depending on the application. A malfunction alarm is also included.
Flexible, Automatic Command Sequence Configuration
May be programmed to perform a five-step sequence of commands for certain operating events. For example, during a DC power failure when the repeater switches to a backup power supply, the repeater can be programmed to switch to low power and send a CW ID advising of the situation, etc.
Additional Features
• 47 CTCSS / 108 DCS Codes Encode and Decode
• CW ID Transmitter
• CW Message
• Multi-Tone Decode
• Compander Per Channel
• D-Sub 25 Pin Accessory Connector
• Automatic DC Backup Switching Alert
• EIA Rack Mount Size
Options
• Voice Inversion Encryption and DTMF Paging
• Rolling Code Encryption
