E/M Wave, Inc.

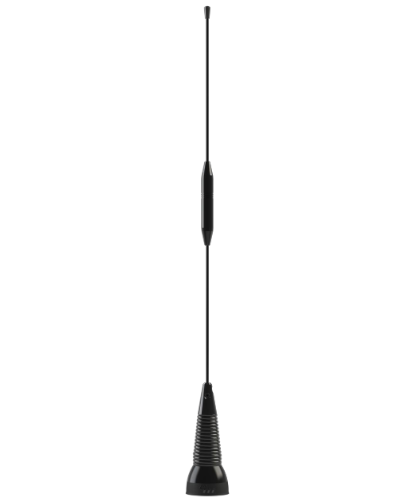

EM-M43002 - E/M Wave Tri-Band IP67 Rated Roof Mount Antenna, 150-162/450-490/763-870 MHz

EM-M43002 - E/M Wave Tri-Band IP67 Rated Roof Mount Antenna, 150-162/450-490/763-870 MHz

$49.50 USD
$49.50 USD
Sale Sold out

EM-M43002 - E/M Wave Tri-Band IP67 Rated Roof Mount Antenna, 150-162/450-490/763-870 MHz

  • Stylish High-Impact, Dual Shot ASA/TPE Base Eliminates Ingress

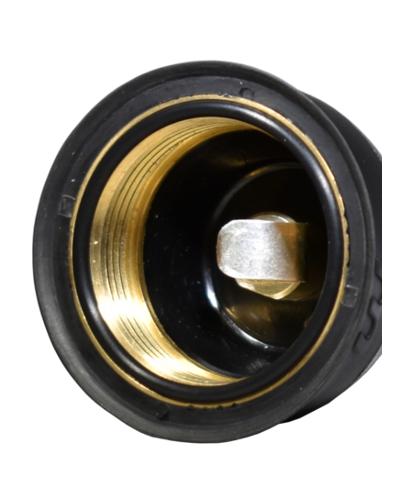

  • Insert Molded NMO Brass Base for Superior Performance, Eliminating Dissimilar Metal Corrosion
  • High Strength, Impact-Resistant 17-7 Black Chrome SS Spring
  • Dual Seal Design Provides IP67 Ingress Protection
  • Hand Torque Installation Maintains Reliable RF Connection
  • Removeable Spring/Whip Protects NMO Contacts During Vehicle Wash
  • Durable Black Chrome Finish for High Conductivity, Quality, and Covert Appearance

Applications: Public Safety/LMR/P25/TETRA, ISM/SCADA/Utilities, Telemetry/Fleet Management, Railroad/Train Control

Part Number: EM-M43002

Mechanical Specifications

Height 17.7 in (447 mm)
Connector NMO
Whip Material, Finish 17-7 SS, Black Chrome
Spring Material 17-7 SS, Black Chrome
Base Material ASA/TPE Over Mold Grip Ring
Mounting NMO Mount
Mounting Hole Diameter 3/4 in (19 mm)
NMO Cable Assembly and Connector Sold Separately
Weight 7.1 oz (200 g)
Operating Temperature -40° to 85° C
Humidity 95%
Ingress Protection IP67

Electrical Specifications

Frequency Band 150-162/450-490/763-870 MHz
VSWR <2:1 (150-162, 450-470, and 763-870 MHz), <2.5:1 (470-490 MHz)
Impedance 50 Ω
Gain Unity / 5 dBi / 4 dBi
Power Rating 100 W
Polarization Vertical
E-Plane 50°-70°, Nominal
H-Plane Omnidirectional
Ground Plane Required
